Model: BCT
Power Supply: 380V 3Ph 50Hz (Customizable)
Application: Spinning packs
Solution: KOH(20%-30%)
Working Temperature: 80°C
Heating: Electric heating
Temperature Control: Meter or PLC control
Control Accuracy: ±1°C
Color: Customizable

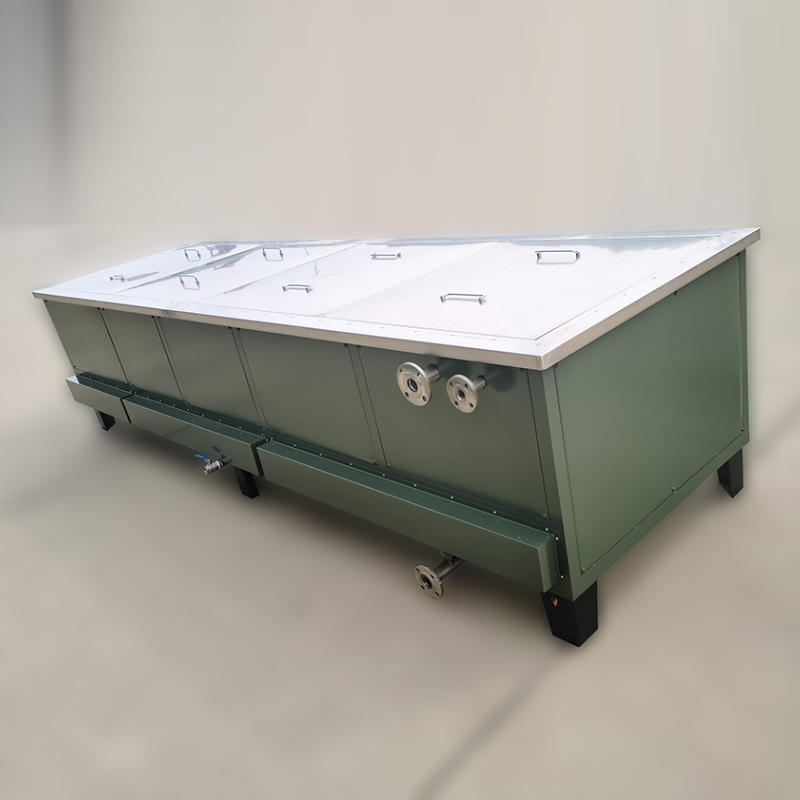

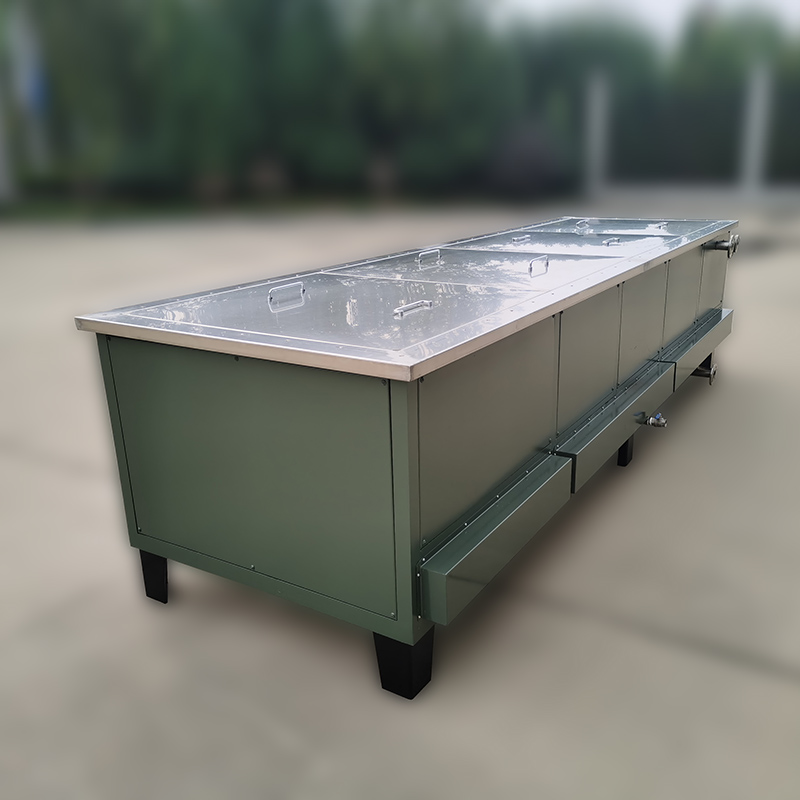

Alkali Bath Cleaning Unit
Product Description
Alkali Bath Cleaning System is used after TEG Bath cleaning.
► ADVANTAGES
- The cleaning is fully automatic
- Compressed air bubble tube is available as per request
- Cleaning cycle is adjustable
- Low power consumption
- Stainless Steel structure
► FEATURES
- Cleaning Tank – made of stainless steel
- Electric Heater – U type, installed at the bottom of the cleaning tank, directly contact with the solution.
- Support Frame – made of stainless steel, unfixed, easily taken out from the tank.
- Control Panel – independent operation, auto logic programmed control of cleaning tank. PID temperature control, SSR drive for heater control.
Notes: The unit could be entirely bespoke, we can design and tailor oven to the customer’s specification.
