Model: BCT
Power Supply: 380V 3Ph 50Hz (Customizable)
Application: filter discs
Solution: TEG (Tri Ethylene Glycol)
Working Temperature: 275°C
Heating: Electric heating
Temperature Control: Meter or PLC control
Control Accuracy: ±1°C
Color: Customizable

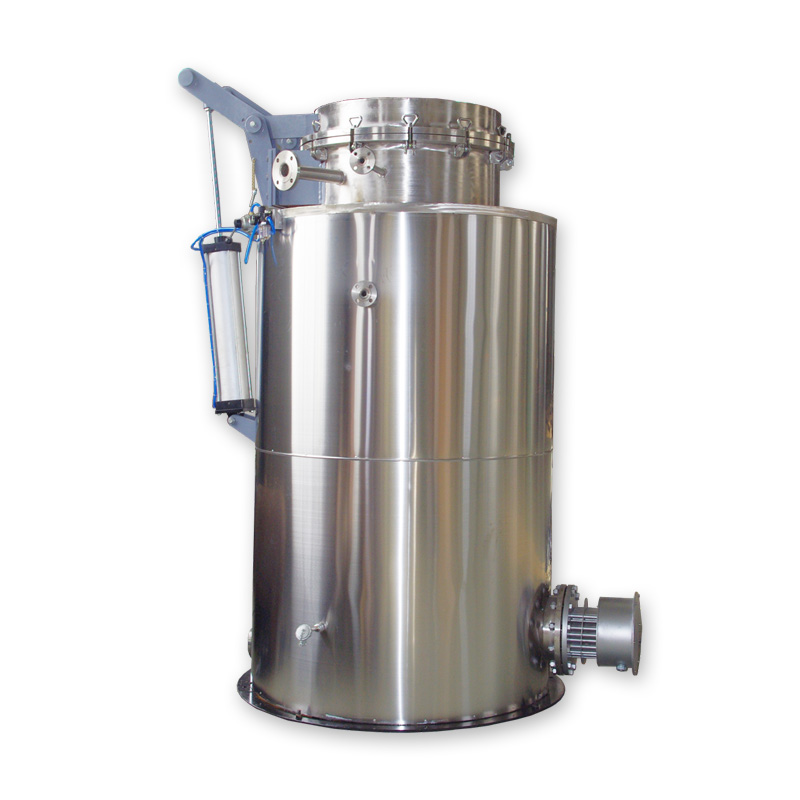

BOPP/BOPET Film Filter Discs Cleaning Systems
Product Description
A set of complete cleaning systems are provided for cleaning of filter discs in BOPP/BOPET film industry.
► Cleaning Process
Filters and Housing Pyrolysis Cleaning and Separate ⇒ TEG Rough Cleaning ⇒ TEG Finish Cleaning ⇒ Water Bath Cleaning ⇒ Discs separate out from the Filter ⇒ Discs Alkali Bath Cleaning ⇒ Discs Acid Bath Cleaning ⇒ Discs High Pressure Water Rinsing ⇒ Untrasonic Cleaning ⇒ Discs Drying ⇒ Discs Test ⇒ Filters Mounting ⇒ Filters Preheating
► Process Cleaning Units
- 1 set Pyrolysis Oven – To separate the filters and housing, and the other purpose is to preheat the filters before installation
- 2 set TEG Bath Cleaning System – Filters of TEG rough cleaning and finish cleaning
- 1 set Water Bath Cleaning System– Filters of water cleaning
- 1 set Alkali Bath Cleaning System – Discs of alkali Cleaning
- 1 set Acid Bath Cleaning System – Discs of acid Cleaning
- 1 set Acid-base Neutralization System – To neutralize the used alkali and the used acid, then discharge
- 1 set Untrasonic Cleaner – Discs of untrasonic cleaning
- 1 set Discs Drying Oven – Discs of drying
- 1 set Discs Bubble Test Machine – Discs Testing
- 1 set Mouting Bench – Assemble Discs to the Filters
