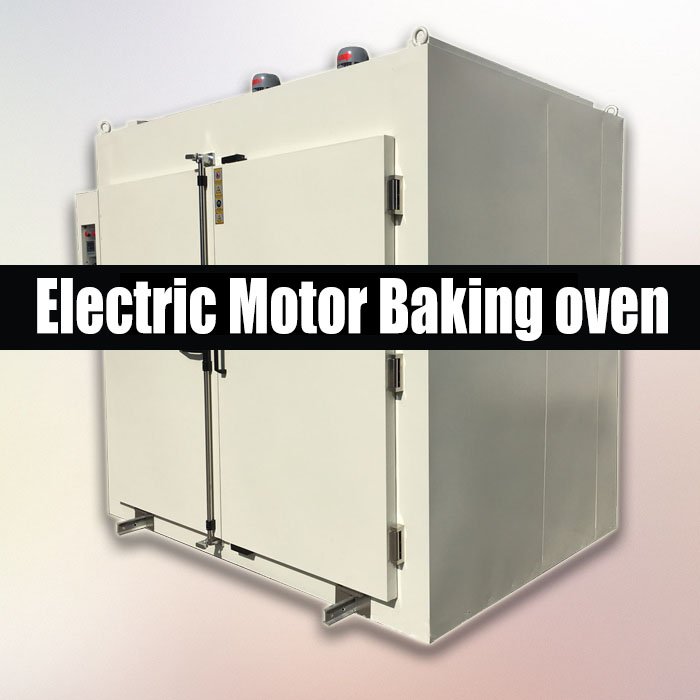

Electric Motor Baking oven

Model: BHF
Power Supply: 380V 3Ph 50Hz (Customizable)
Application:  Dip and bake
Workong Temperature: RT+30°C to 200°C
Control Accuracy: ± 1°C
Heating:  Electric heating
Heating Control: SSR or SCR power controllers
Temperature Control: Meter or PLC control
Color: Customizable

Product Description

Electric Motor Baking oven is heated chamber used for drying of solvents or varnish and resins used in the windings of electric motors and transformers. Recirculated air blower is provided to constantly circulate hot air in interior chamber, with high rate vertical or horizontal airflow, which offer excellent temperature uniformity.

Conventional dip and bake using convection heat typically have dip times in the range of 5 to 30 min for larger parts and bake times of 2 to 4 h at 200°C. Times range from 30 s to 5 min for smaller parts. Parts coated with water-based varnishes will operate at lower temperatures.

► APPLICATIONS

  • Transformer windings dip and bake
  • Electric motor rotors dip and bake

► FEATURES

  • Durable tubular heating elements
  • All welded construction
  • Durable recirculating blower
  • Adjustable exhaust outlet damper
  • Durable trolley
  • Insulated with alumina silicate fibre insulation
  • 304 stainless steel interior and painted exterior
  • Heavy duty doors
  • Silicone door gasket
  • Viewing window (optional)

► AIRFLOW PATTERNS

  • Comnination (horizontal & vertical up) air flow

► CONTROL

  • Digital temperature controller
  • SSR or SCR power controllers
  • Heat ON/OFF switch
  • High volume recirculation blower
  • Timer with range up to 0 to 999 hours/minutes/seconds
  • Audible and visible alarm indicators
  • Control Accuracy: ±1°C
  • Uniformity: ±5°C
  • Available input power supply to your specifications
  • Temperature recorder (optional)
  • PLC with HMI(touch panel) (optional)
  • Programmable temperature controllers (optional)

► SAFETY PROTECTION

  • Separate excess temperature interlock to turn off heat on malfunction of main temperature controller
  • Electrical interlock shuts off heat if recirculating blower is broken

► SPECIFICATIONS

Model Internal Dimensions(WXDXH mm) Outside Dimensions(WXDXH mm) Volume Heat Blower Max Temp
BHF8810 800 × 800 × 1000 1170 × 1000 × 1580 640L 9KW 750W 200℃
BHF81010 800 × 1000 × 1000 1170 × 1200 × 1580 800L 12KW 750W 200℃
BHF101212 1000 × 1200 ×1200 1370 × 1400 × 1780 1440L 16KW 1100W 200℃
BHF101215 1000 × 1200 × 1500 1370 × 1400 × 2080 1800L 21KW 750W*2 200℃
BHF121518 1200 × 1500 × 1800 1570 × 1700 × 2380 3240L 24KW 750W*4 200℃
BHF151820 1500 × 1800 × 2000 1870 × 2000 × 2580 5400L 48KW 1100W*4 200℃
BHF182020 1800 × 2000 × 2000 2170 × 2200 × 2580 7200L 60KW 1100W*4 200℃
BHF202520 2000 ×2500 × 2000 2370 × 2700 × 2580 10000L 80KW 2200W*4 200℃

Notes: For more models, please contact us. The unit could be entirely bespoke, we can design and tailor ovens to your specification.
