Product Description

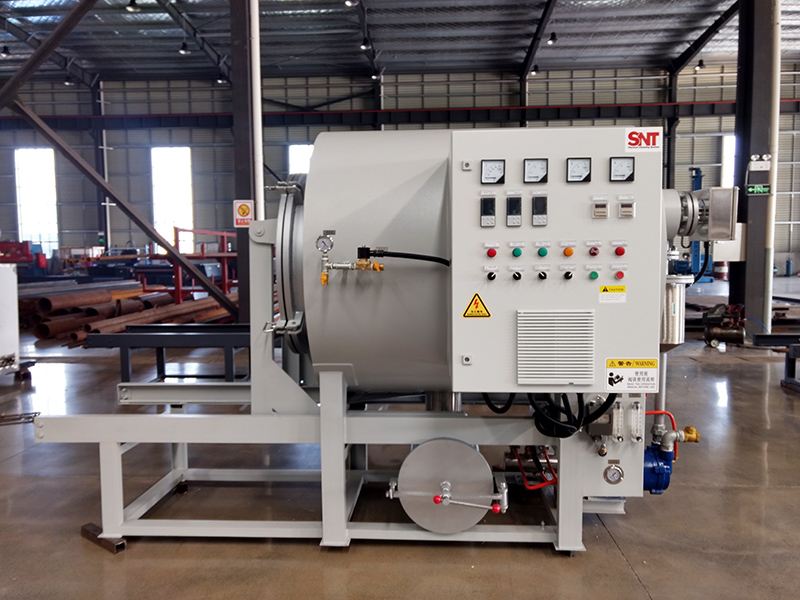

Vacuum Pyrolysis Oven is designed specially for cleaning polymers from a variety of metal parts. The parts to be cleaned are heated in a chamber where the polymer melts and drains into the bottom collector. Remaining polymer is vaporized and then water scrubbed in a secondary scrubber where condensates are collected and rush out with water. Since cleaning takes place under vacuum, combustion does not occur. The parts are protected from excessive or localized high temperatures. The whole process has no pollution.

► APPLICATION FOR PUMP

► BENEFITS

• Cleaning is totally Automatic.
• Precise temperature control.
• Suitable for different thermoplastic polymers, e.g. PET, PA, PP, TPE, PB, PBT, PC, PMMA, ABS, etc.
• Short cleaning cycles (about 8 hours) and low energy consumption.
• Simple operation.
• Safety and no pollution.

 ► FEATURES

• Electric heaters – The electric heaters heats the chamber to 420°C-500°C which is depended on the kinds of polymers.
• Waste collector – The waste collector is for collecting the melting-down polymers from the shelf.
• Water Spray Rubber – The water spray rubber is for spray the off-gas out of the chamber.
• Built-In shelf – A heavy-duty structural steel shelf is included. The shelf rolls inside the oven onthe tracks, for ease of loading and unloading.
• Afterheater – The afterheater is for reheat the off-gas that out of the chamber preventing pipe blockage.
• Vacuum Pump – Vacuum pump is for create a vacuum chamber to prevent the parts to be cleaned from damage due to ignition in the oven.
• Safety & Controls – The Ovens include adual-element temperature sensor, water pressure safety interlock switch, Y-strainer, automatic solenoid valve.

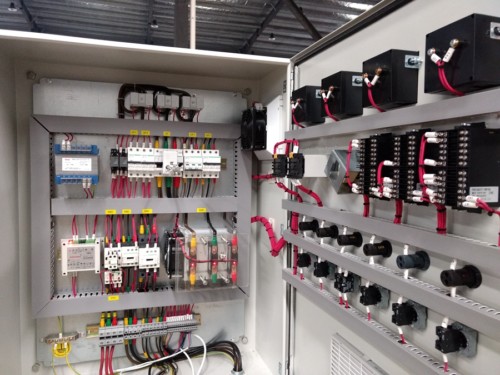

• Control Panel – The Ovens come standard with a control panel, circuit breaker, control relays, interlocks, and terminal strips.
• PLC+Touch panel – Direct display the temperature rise curve, having all controls. (Optional)
• Catalyst – The generated off-gas out of the oven are converted to harmless water vapor and carbon dioxide in the catalyst. (Optional)

► SPECIFICATIONS

Notes: For more models, please contact us. The unit could be entirely bespoke, we can design and tailor ovens to your specification.

► CLEANING PROCESS

I. Melting Phase

The parts to be cleaned are heated to about 300°C in the chamber. After this process, most  of the polymer melts and drains into the bottom collector.







II. Pyrolysis Phase

Polymer that did not melt during the first phase will be pyrolyzed and vaporized under vacuum. The generated gases are then water scrubbed in a secondary scrubber where condensates are collected and rush out with water.





III. Oxidation Phase

Remaining ploymer that still exist after the pyrolysis phase will be burnt under vacuum and limited air.





► BEFORE CLEANING AND AFTER CLEANING
